patch — Create a colored polygon patch from coordinates or faces and vertices.

patch publishes polygon geometry with constant, flat, or interpolated face coloring. Indexed and truecolor source data remain available through graphics properties and scene replay.

Syntax

h = patch(X, Y, C)
h = patch(X, Y, Z, C)
h = patch(S)
h = patch('Faces', F, 'Vertices', V, ...)
h = patch(ax, ...)

Inputs

X
Type
NumericArray
Required
Yes
Description
Patch X coordinates.
Y
Type
NumericArray
Required
Yes
Description
Patch Y coordinates.
C
Type
Any
Required
Yes
Description
Face color specification.
Z
Type
NumericArray
Required
Yes
Description
Patch Z coordinates.
S
Type
Any
Required
Yes
Description
Struct containing patch properties.
facevert
Type
Any
Required
Variadic
Description
Faces/Vertices property/value pairs.
props
Type
Any
Required
Variadic
Description
Additional patch property/value pairs.
ax
Type
NumericScalar
Required
Yes
Description
Target axes handle.
data
Type
Any
Required
Variadic
Description
Patch positional/property arguments.
NameTypeRequiredDefaultDescription
XNumericArrayYes—Patch X coordinates.
YNumericArrayYes—Patch Y coordinates.
CAnyYes—Face color specification.
ZNumericArrayYes—Patch Z coordinates.
SAnyYes—Struct containing patch properties.
facevertAnyVariadic—Faces/Vertices property/value pairs.
propsAnyVariadic—Additional patch property/value pairs.
axNumericScalarYes—Target axes handle.
dataAnyVariadic—Patch positional/property arguments.

Returns

h
Type
NumericScalar
Description
Handle to the created patch object.
NameTypeDescription
hNumericScalarHandle to the created patch object.

Errors

RunMat:patch:InvalidArgument
When
Patch coordinates, faces/vertices, or property/value arguments are malformed.
Message
patch: invalid argument
RunMat:patch:Internal
When
Internal patch triangulation/render setup fails unexpectedly.
Message
patch: internal operation failed
IdentifierWhenMessage
RunMat:patch:InvalidArgumentPatch coordinates, faces/vertices, or property/value arguments are malformed.patch: invalid argument
RunMat:patch:InternalInternal patch triangulation/render setup fails unexpectedly.patch: internal operation failed

Geometry and properties

Vector coordinate inputs create one polygon; matrix coordinate inputs create one polygon per column. Polygon edges close automatically. Faces are MATLAB-style one-based vertex indices; Vertices accepts N-by-2 coordinates for 2-D geometry or N-by-3 for 3-D geometry.

XData, YData, ZData, CData, Faces, and Vertices retain native single, double, or integer class, shape, and exact values for properties and scene persistence. Host triangulation and renderer packing are explicit floating boundaries. The returned patch handle works with get, set, ishandle, and isgraphics.

A typed-integer numeric alias for a leading axes handle is a gated RunMat extension; ordinary axes objects remain the compatibility form.

FaceColor accepts named colors, RGB triples, flat, interp, or none. EdgeColor accepts named colors, RGB triples, or none. FaceAlpha and EdgeAlpha lie in [0,1]. LineWidth, DisplayName, and Visible use the shared plotting property model. Faces, Vertices, XData, YData, and ZData are supported properties; lighting, normals, texture coordinates, and callback properties remain deferred.

Patch is a plotting sink and fusion boundary. Host and gathered-GPU inputs produce the same object and handle behavior. GPU coordinate inputs gather for shape validation, one-based Faces handling, NaN padding, and polygon triangulation before submission to the shared GPU renderer; there is no direct resident triangulation/packing path.

Polygon colors

patch(X,Y,C) and patch(X,Y,Z,C) use a coordinate color grid: indexed C matches the X/Y grid, and RGB C adds a final three-component plane. For uncolored 3-D geometry, specify XData, YData, and ZData properties. patch('Faces',F,'Vertices',V,'FaceVertexCData',C) uses indexed scalar/per-face/per-vertex colors or n-by-3 RGB rows. Source colors remain separate from triangulated renderer vertices.

FaceColor='flat' uses one color per face (the first vertex for per-vertex data). FaceColor='interp' requires per-vertex colors, which are interpolated across each triangle. Floating truecolor components lie in [0,1], with NaN making the affected face/vertex transparent; integer components are normalized from their native class range at rendering.

Properties and replay

get and set accept FaceVertexCData, CData, and CDataMapping on patch handles. Color source class and shape survive scene replay; scaled indexed colors use axes color limits or the source extent. In direct mode, floating values are one-based colormap indices and integer values are zero-based indices.

Explicit GPU coordinate/color inputs use the existing plotting gather boundary where supported. Patch output is a host graphics handle, not a resident numeric GPU result. Finite whole-scene allocation and browser renderer execution remain separately qualified.

Examples

Create a triangle patch

x = [0 1 0];
y = [0 0 1];
h = patch(x, y, 'red');

Create two rectangle patches from matrix columns

X = [0 2; 1 3; 1 3; 0 2];
Y = [0 0; 0 0; 1 1; 1 1];
h = patch(X, Y, 'cyan', 'EdgeColor', 'black');

Create a patch from Faces and Vertices

V = [0 0; 1 0; 1 1; 0 1];
F = [1 2 3 4];
h = patch('Faces', F, 'Vertices', V, 'FaceColor', [0.2 0.6 0.9]);
get(h, 'Type')

Expected output:

ans =
    'patch'

Create a 3-D patch

V = [0 0 0; 1 0 0; 0.5 1 0.5];
F = [1 2 3];
h = patch('Faces', F, 'Vertices', V, 'FaceAlpha', 0.6);
view(3);

Interpolate colors across a triangular patch

F = [1 2 3]; V = [0 0; 1 0; 0 1]; C = [1 0 0; 0 1 0; 0 0 1]; h = patch('Faces',F,'Vertices',V,'FaceVertexCData',C,'FaceColor','interp'); assert(isequal(get(h,'FaceVertexCData'),C));

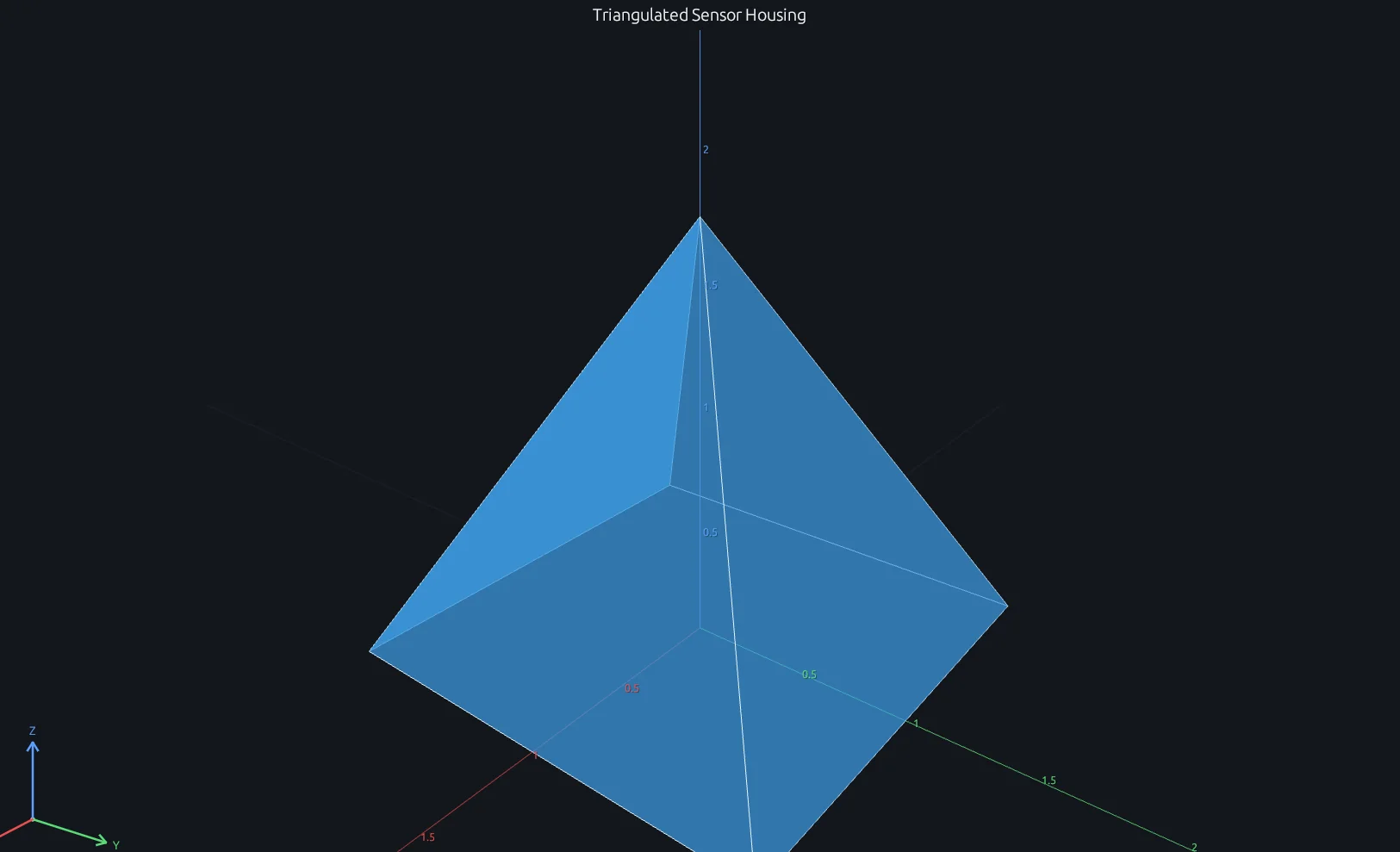

Rendered patch example

vertices = [-1 -1 0; 1 -1 0; 1 1 0; -1 1 0; 0 0 1.8];
faces = [1 2 5; 2 3 5; 3 4 5; 4 1 5];

patch('Faces', faces, 'Vertices', vertices, 'FaceColor', [0.25 0.65 0.95], 'EdgeColor', [0.9 0.95 1.0], 'FaceAlpha', 0.72);
title('Triangulated Sensor Housing');
xlabel('x');
ylabel('y');
zlabel('z');
view(38, 24);
axis equal;
grid on;
Expected output:
Translucent pyramid geometry rendered from MATLAB patch faces and vertices in RunMat

Compare this result with other chart types in the plot examples.

Using patch with coding agents

Open a RunMat example with live inputs, then ask the agent to explain how patch changes the result.

Run a small patch example, explain the result, then change one input and compare the output.

FAQ

Does patch close polygons automatically?⌄

Yes. You can provide open polygon coordinate lists; RunMat closes the edge loop when rendering the patch.

Are Faces indices zero-based or one-based?⌄

They are one-based to match MATLAB. Faces = [1 2 3] references the first, second, and third rows of Vertices.

Does patch have a direct GPU-resident geometry path?⌄

Not yet. RunMat gathers GPU-resident patch inputs for validation and triangulation, then submits the resulting geometry to the shared GPU renderer. A direct GPU triangulation/packing path can be added later for very large patch meshes.

When can FaceColor be interp?⌄

Provide color data for every vertex, then set FaceColor to interp.

Related Plotting functions

2D Charts

area · bar · errorbar · heatmap · hist · histogram · loglog · pie · plot · scatter · semilogx · semilogy · stairs · stem

3D & Surface

contour · contour3 · contourf · mesh · meshc · plot3 · quiver · scatter3 · surf · surfc

Images

image · imagesc · imshow

Axes & Layout

axis · box · grid · sgtitle · subplot · title · view · zlabel

Appearance

colorbar · colormap · legend · shading

Handle Access

gca · gcf · get · set

Other

addpoints · ancestor · animatedline · autumn · axes · barh · bone · caxis · cla · clf · clim · colorcube · colororder · cool · copper · copyobj · cylinder · daspect · datacursormode · dataTipTextRow · drawnow · fcontour · figure · fill · fill3 · findobj · fsurf · gobjects · gray · groot · hgload · hgsave · hidden · histogram2 · hold · hot · inferno · isgraphics · ishandle · jet · line · lines · linkaxes · magma · openfig · opengl · pan · parula · pink · plasma · plotmatrix · plotyy · polarhistogram · polarplot · polarscatter · print · quiver3 · ribbon · saveas · savefig · sphere · spring · stackedplot · subtitle · summer · suptitle · text · textscatter · textscatter3 · triplot · turbo · viridis · waitbar · winter · wordcloud · xlabel · xlim · xline · xscale · xtickangle · xtickformat · xticklabels · xticks · ylabel · ylim · yline · yscale · ytickangle · ytickformat · yticklabels · yticks · zlim · zoom

More plotting resources

  • Graphics Handles
  • Plot replay and export

Source you can read

Every RunMat function's source is public. Read exactly how patch is executed, line by line, in Rust.

  • View the source for patch in Rust on GitHub
  • Learn how the RunMat runtime works
  • Found a bug? Open an issue with a minimal reproduction.
